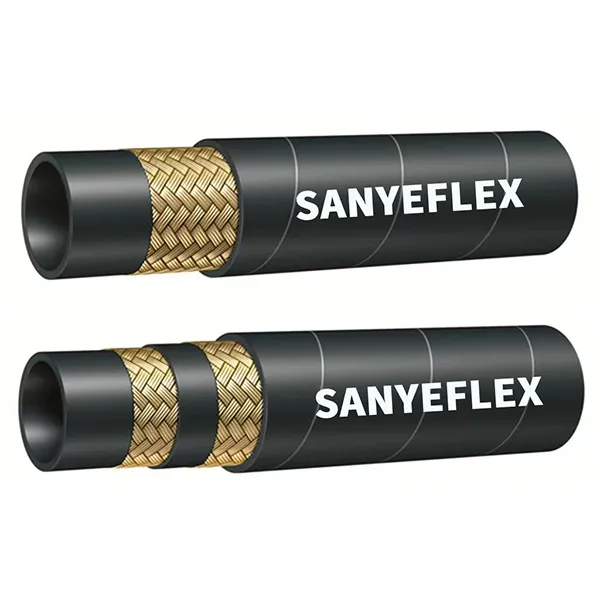

CONSTRUCTION: synthetic rubber inner tube, wire braid reinforcement and synthetic rubber cover.
Application: Gasoline pump hose for tank stations for mineral oils, diesel and gasoline with up to 50% aromatic content.
Inner rubber layer: black, smooth, electrically conductive NBR+BR rubber compound
Reinforcement: high strength synthetic copper wire layer
Outer layer: EPDM + NBR rubber compound, resistant to oil, fuel, ozone and weather agents.
Temperature: -40°C + 100°C
Specification
Hose I.D. | Wire O.D. | Hose I.D. | Working Pressure | Burst Pressure | Minimum Bend Radius | Weight | |||
| inch | mm | mm | mm | MPa | Psi | MPa | Psi | mm | kg/m |
| 1/2 | 12.7 | 19.7 | 24 | 2.5 | 363 | 10 | 1450 | 180 | 0.41 |
| 5/8 | 15.9 | 22.7 | 27 | 2.5 | 363 | 10 | 1450 | 205 | 0.45 |
| 3/4 | 19 | 25.7 | 30 | 2.5 | 363 | 10 | 1450 | 240 | 0.58 |
| 7/8 | 22 | 28.7 | 33 | 2 | 290 | 8 | 1160 | 280 | 0.7 |
| 1 | 25.4 | 32.2 | 37 | 2 | 290 | 8 | 1160 | 300 | 0.88 |
| 1 1/4 | 31.8 | 39.2 | 44 | 2 | 290 | 8 | 1160 | 420 | 1.23 |
Fuel Dispenser Hoses are designed to dispense and transfer gasoline and other petroleum-based fuels. It is actually a connector that connects the fuel gun of a car or other vehicle to the fuel tank. Hence this fuel hose is also known as fuel gun hose. It is a flexible rubber hose that is used to transport gasoline, diesel and other oils. The fuel dispenser hose is one of the most important parts of a gas station and plays an important role.
Premium hardwall wire braid reinforcement
Very resistant to ozone cracking and abrasion
Cover retains color better and has a higher gloss
Quality hose construction, quality components
