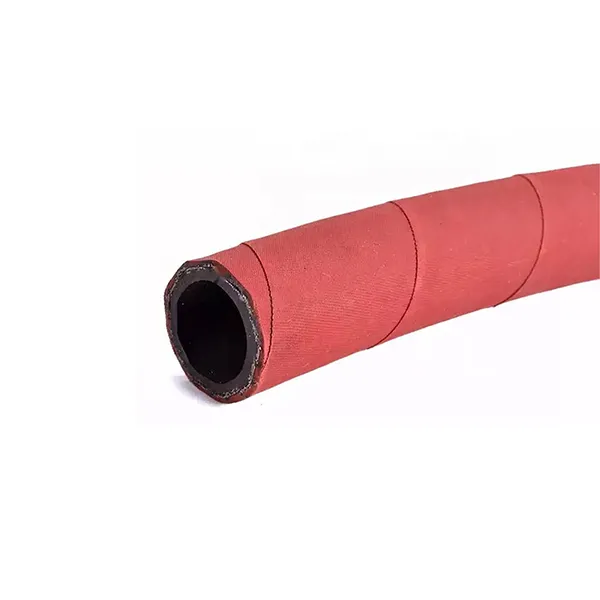

Steam Hose (Wrapped Cover / Smooth Cover)

Wire Braided Steam Hose: Q/HYL03 STANDARD

Construction: Made ofexcellent heat-resistant rubber, The reinforcement is braided with Copper facing wire.

Applications: For conveying saturated steam and superheated water continually at a temperature below 150 ℃ or intermittently at a temperature below 160 ℃.

Inquire Now Next Product

Specification

One layer high tensile steel wire braid 1W/B

HOSE ID		Hose OD	Working Pressure		Burst Pressure		Minimum Bend Radius
Inch	mm	mm	MPa	Psi	MPa	Psi	mm
3/8	11.4+0.5	21.5	1.0	150	10	1450	130
1/2	13.5+0.5	24.5	1.0	150	10	1450	180
5/8	15.8+0.5	27.5	1.0	150	10	1450	205
3/4	19.0+0.5	30.5	1.0	150	10	1450	240
7/8	22.0+0.5	33.5	1.0	150	10	1450	280
1	25.2+0.5	37.0	1.0	150	10	1450	300
1-1/4	28.6+0.6	44.0	1.0	150	10	1450	420
1-1/2	32.0+0.6	50.5	1.0	150	10	1450	500
1-3/4	39.5+0.8	57.5	1.0	150	10	1450	500
2	45.8+0.8	63.5	1.0	150	10	1450	630
2-1/2	56.5+0.8	77.5	1.0	150	10	1450	700

Two high tensile steel wire braids 2W/B

HOSE ID		Hose OD	Working Pressure		Burst Pressure		Minimum Bend Radius
Inch	mm	mm	MPa	Psi	MPa	Psi	mm
3/8	11.4+0.5	23.0	2.0	300	20	2900	130
1/2	13.5+0.5	26.0	2.0	300	20	2900	180
5/8	15.8土0.5	29.0	2.0	300	20	2900	205
3/4	19.0+0.5	32.0	2.0	300	20	2900	240
7/8	22.0+0.5	35.0	2.0	300	20	2900	280
1	25.2+0.5	38.5	2.0	300	20	2900	300
1-1/4	28.6+0.6	45.5	2.0	300	20	2900	420
1-1/2	32.0+0.6	52.0	2.0	300	20	2900	500
1-3/4	39.5+0.8	59.0	2.0	300	20	2900	500
2	45.8+0.8	65.0	2.0	300	20	2900	630
2-1/2	56.5+0.8	79.0	2.0	300	20	2900	700
