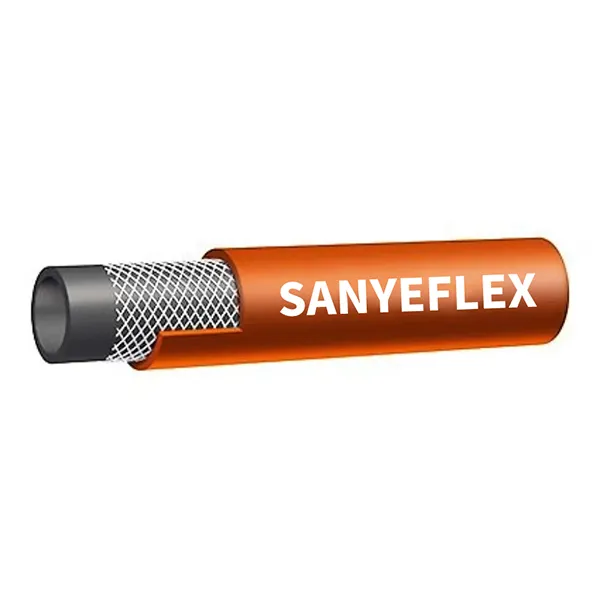

Tube: NBR, black, smooth
Reinforcement: High tensile textile cords
Cover: Orange EPDM/SBR blended, weather and ozone resistant
Temperature: -40℃to~+90℃
Application: for the conveyance of liquid gas, home burner system,oil-resistant
Specification
| Hose I.D` | Hose O.D | Working Pressure | Burst Pressure | Minimum Bend Radius | Weight | |||
| mm | inch | mm | bar | psi | bar | psi | mm | kg/m |
| 6 | 1/4 | 13 | 20 | 300 | 60 | 900 | 35 | 0.15 |
| 8 | 5/16 | 15 | 20 | 300 | 60 | 900 | 50 | 0.18 |
| 9 | 23/64 | 16 | 20 | 300 | 60 | 900 | 55 | 0.20 |
| 10 | 3/8 | 17 | 20 | 300 | 60 | 900 | 60 | 0.21 |
