Steel Wire Braided Hydraulic Hose(Wrapped Cover/Smooth Cover)

SAE 100 R16

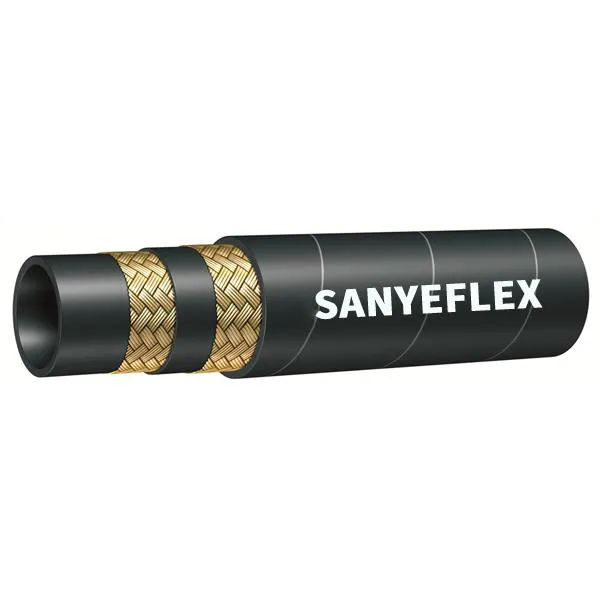

Structure: it is composed of three parts: tube, reinforcement and cover.

Tube: black synthetic rubber, which is resistant to oil, abrasion and corrosion.

Reinforcement: one layer or two layers of high tensile braided steel wire, making the hose work well in high pressure working conditions.

Cover: high quality synthetic rubber, making the hose resistant to abrasion, corrosion, cut, weather, ozone, aging and sunlight.

Working temperature: -40 °C to +125 °C.

APPLICATIONS: Hose range suitable to carry hydraulic fluids, such as glycol, mineral oils, emulsion, hydrocarbons, etc.

Specification

Specification

TYPE

DASH

I.D.

O.D.

W.P.

B.P.

Min B.R.

Weight


-

Inch

mm

mm

mm

MPa

Psi

Inch

Inch

mm

SY16-6

4

1/4

6.4

13.4

34.5

5000

138

20000

50

0.27

SY16-8

5

5/16

7.9

15.0

29.3

4250

117

17000

55

0.35

SY16-10

6

3/8

9.5

17.4

27.5

4000

110

16000

65

0.42

SY16-13

8

1/2

12.7

20.6

24.0

3500

96

14000

90

0.52

SY16-16

10

5/8

15.9

23.8

19.0

2750

76

11000

100

0.63

SY16-19

12

3/4

19.0

27.8

15.5

2250

62

9000

120

0.81

SY16-25

16

1

25.4

35.9

13.8

2000

55

8000

150

1.17

SY16-32

20

1-1/4

31.8

43.6

11.2

1625

45

6500

210

1.49

SAE 100 R16

SAE 100 R16 steel wire reinforced hydraulic hose is suitable for connecting hydraulic equipment in narrow installation spaces as it has a small bending radius and outside diameter. It consists of three parts: hose body, reinforcement and cover. The hose body is made of black oil-resistant synthetic rubber, which has excellent oil transmission performance. The reinforcing rib is designed with one or two layers of braided steel wire, which provides strong resistance to high pressure. The outer rubber layer is made of weather-resistant synthetic rubber, making the hose resistant to weather, ozone, aging, abrasion, corrosion and cutting.
