Wrapped cover/ Smooth cover
Inner tube: Excellent oil resistant rubber.
Reinforcement: 2 Layers of high tensile copper-coated steel wire braid.
Cover: Abrasion and anti-aging synthetic rubber.
Temperature range: -40℃ to +125℃.
Application: For the delivery of hydraulic liquids or water based liquids.
Specification
DASH | I.D. | W.D. | O.D. | W.P. | B.P. | Min B.R. | Weight | ||||
- | Inch | mm | mm | mm | MPa | Psi | MPa | Psi | mm | kg/m | |
3 | 3/16 | 4.8 | 9.5 | 11.8 | 32.0 | 4640 | 128.0 | 18560 | 90 | 0.19 | |
SY1SN-6 | 4 | 1/4 | 6.4 | 11.1 | 13.4 | 32.0 | 4640 | 128.0 | 18560 | 100 | 0.21 |
SY1SN-8 | 5 | 5/16 | 7.9 | 12.7 | 15.0 | 28.0 | 4060 | 112.0 | 16240 | 115 | 0.24 |
SY1SN-10 | 6 | 3/8 | 9.5 | 15.1 | 17.4 | 25.6 | 3712 | 102.4 | 14848 | 130 | 0.33 |
SY1SN-13 | 8 | 1/2 | 12.7 | 18.3 | 20.6 | 22.4 | 3248 | 89.6 | 12992 | 180 | 0.41 |
SY1SN-16 | 10 | 5/8 | 15.9 | 21.4 | 23.7 | 21.0 | 3045 | 84.0 | 12180 | 200 | 0.45 |
SY1SN-19 | 12 | 3/4 | 19.0 | 25.4 | 27.7 | 14.4 | 2088 | 57.6 | 8352 | 240 | 0.58 |
SY1SN-25 | 16 | 1 | 25.4 | 33.3 | 35.6 | 11.2 | 1624 | 44.8 | 6496 | 300 | 0.88 |
SY1SN-32 | 20 | 1-1/4 | 31.8 | 40.5 | 43.5 | 6.0 | 870 | 24.0 | 3480 | 420 | 1.23 |
SY1SN-38 | 24 | 1-1/2 | 38.1 | 46.8 | 50.6 | 5.0 | 725 | 20.0 | 2900 | 500 | 1.51 |
SY1SN-51 | 32 | 2 | 50.8 | 60.2 | 64.0 | 4.0 | 580 | 16.0 | 2320 | 630 | 1.97 |

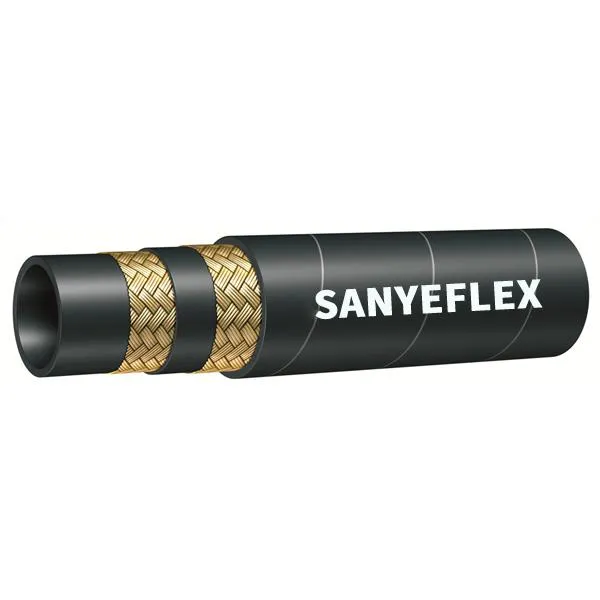

SAE 100R2 Hydraulic Hose is made of oil-resistant tubing and is suitable for transporting petroleum-based hydraulic fluids. In addition, it can transport oil without excessive heat and leakage. It is mainly used for some mobile equipment, such as agricultural tractors, dump trucks and in-plant hydraulic equipment.
It consists of three parts: tube, reinforcement and cover. The tube is made of oil-resistant synthetic rubber, so it is mainly used for transporting oil. The reinforcement is made of two layers of high-strength braided steel wire, which makes the hose structurally strong and resistant to high pressure. Therefore, it has excellent performance under high pressure working environment. The outer cover is made of high-quality synthetic rubber, which is weather-resistant, ozone-resistant, corrosion-resistant, abrasion-resistant, aging-resistant, sun-resistant, and cut-resistant. The hose thus has a longer service life.
Hose range suitable to carry hydraulic fluids such as glycol, mineral oils、fuels、lubrication、emulsion、hydrocarbons etc.
