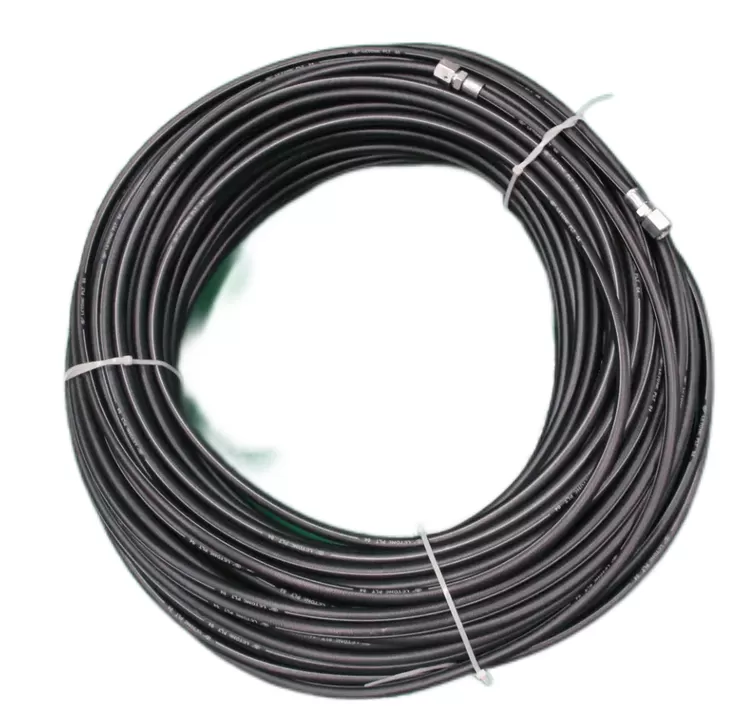

Pilot Hose Super Flexible Series Braided Hydraulic Hose
Wrapped cover/ Smooth cover
Inner tube: Excellent oil resistant rubber.
Reinforcement: 1Layer of high tensile copper-coated steel wire braid.
Cover: Abrasion and anti-aging synthetic rubber.
Temperature range: -40℃ to +125℃.
Specification
| TYPE | DASH | I.D. | W.D. | O.D. | W.P. | B.P. | Min B.R | Weight | |||
| - | Inch | mm | mm | mm | MPa | Psi | MPa | Psi | mm | kg/m | |
| SY1PS-6G | 4 | 1/4 | 6.2 | 10.1 | 11.5 | 14.0 | 2030 | 56.0 | 8120 | 40 | 0.19 |
| SY1PS-10G | 6 | 3/8 | 9.3 | 13.1 | 14.7 | 10.0 | 1450 | 40.0 | 5800 | 50 | 0.23 |
DIN EN856 4SH (Wrapped Cover / Smooth Cover)
